Python计算Ant Puzzle日历拼图解法
信竞退役这么久，难得又有了一篇可以打算法tag的文章。
前两天收到 ncc 同学送的生日礼物——

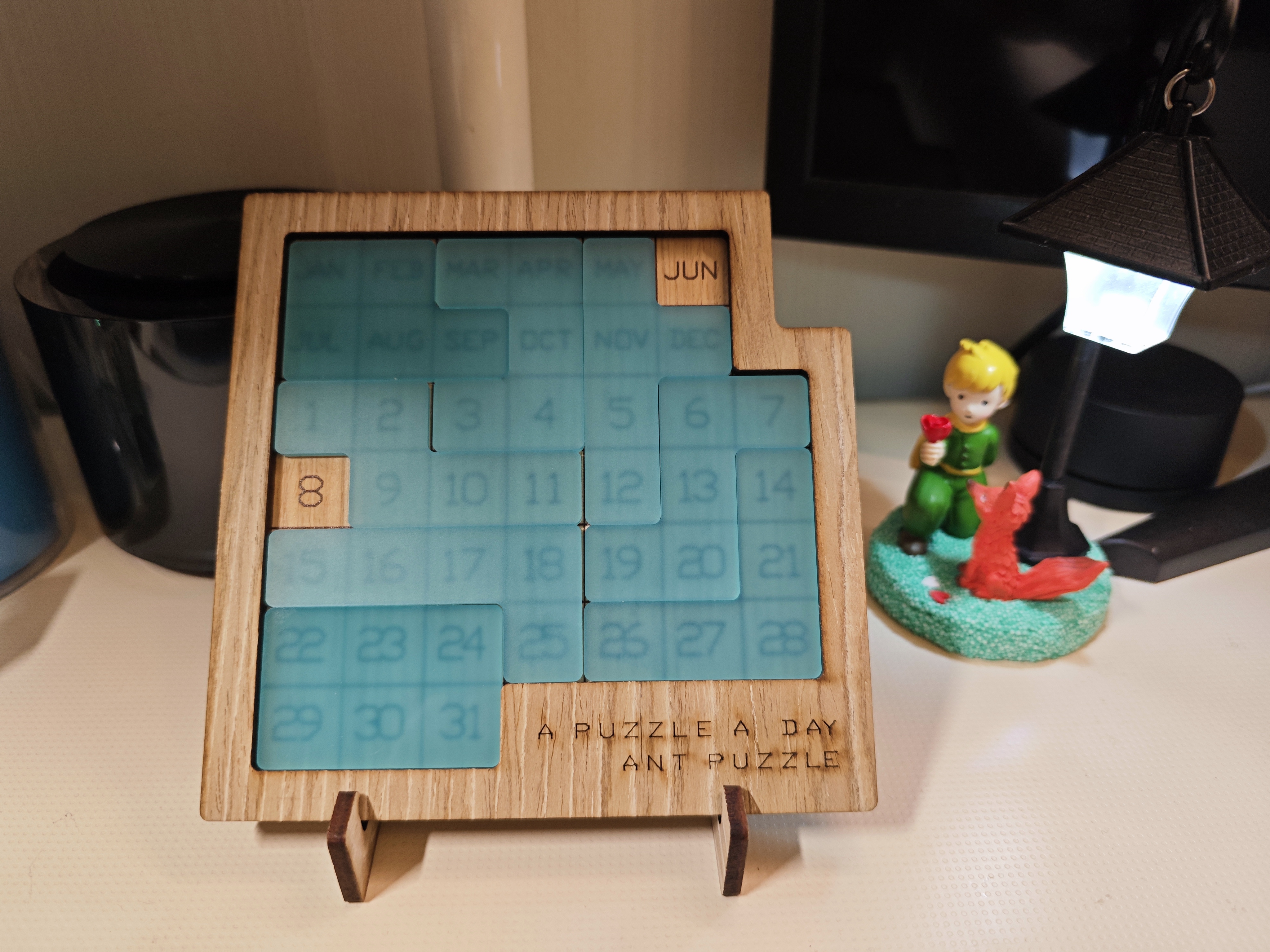

一个需要每天手动重新拼拼图的日历
然而，我研究了许久……一个日期也没拼出来[手动裂开]

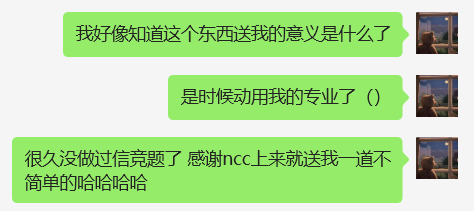

正在我一筹莫展的时候我想到了我的专业：
那么剩下的事情就变得简单了！
:::: code-group ::: code-group-item main.py
from blocks import blocks, total_blocks
from map import MAP, set_date
def output():
for line in MAP:
print(" ".join(f"{num:>{3}}" for num in line))
def dfs(block_cnt):
if block_cnt == total_blocks:
print("Success!")
output()
exit(0)
# 寻找可放置拼图的点
for x in range(len(MAP) - 1):
for y in range(len(MAP[x])):
if MAP[x][y] != 0:
continue
try:
if MAP[x - 1, y] != 0 and MAP[x, y - 1] != 0 and MAP[
x + 1, y] != 0 and MAP[x, y + 1] != 0:
return
except:
...
# 尝试以这个点为左上角放置拼图
for block in blocks[block_cnt]:
# 检测该拼图是否能放置
flag = True
try:
for dot in block:
if MAP[x + dot[0]][y + dot[1]] != 0:
flag = False
break
except IndexError:
flag = False
if not flag:
continue
for dot in block:
MAP[x + dot[0]][y + dot[1]] = block_cnt + 1
# print(x, y, block_cnt + 1)
dfs(block_cnt + 1)
for dot in block:
MAP[x + dot[0]][y + dot[1]] = 0
if __name__ == '__main__':
date = [int(i) for i in input('请输入日期：').split('.')]
set_date(date[0], date[1])
dfs(0)
print("Fail!"):: code-group-item blocks.py
_blocks = [
[(0, 0), (0, 1), (0, 2), (1, 0), (1, 2)],
[(0, 0), (0, 1), (0, 2), (0, 3), (1, 3)],
[(0, 0), (0, 1), (0, 2), (1, 2), (1, 3)],
[(0, 0), (0, 1), (0, 2), (1, 0), (1, 1), (1, 2)],
[(0, 0), (0, 1), (0, 2), (1, 1), (1, 2)],
[(0, 0), (1, 0), (1, 1), (1, 2), (2, 2)],
[(0, 0), (0, 1), (0, 2), (1, 2), (2, 2)],
[(0, 0), (1, 0), (1, 1), (2, 0), (3, 0)],
]
total_blocks = len(_blocks)
def rotate_90(puzzle):
return [(y, -x) for x, y in puzzle]
def rotate_180(puzzle):
return [(-x, -y) for x, y in puzzle]
def rotate_270(puzzle):
return [(-y, x) for x, y in puzzle]
def translate_to_positive(puzzle):
min_x = min(x for x, y in puzzle)
min_y = min(y for x, y in puzzle)
return [(x - min_x, y - min_y) for x, y in puzzle]
def generate_rotations(puzzle):
rotations = [puzzle]
rotations.append(translate_to_positive(rotate_90(puzzle)))
rotations.append(translate_to_positive(rotate_180(puzzle)))
rotations.append(translate_to_positive(rotate_270(puzzle)))
return [translate_to_positive(rotation) for rotation in rotations]
blocks = [generate_rotations(block) for block in _blocks]
if __name__ == '__main__':
for block in blocks:
print(block)
print():: code-group-item map.py
MAP = [
[0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0, 0, 0, 0, 0],
[0, 0, 0],
]
def set_date(month, day):
if month <= 6:
MAP[0][month - 1] = -1
elif month <= 12:
MAP[1][month - 7] = -1
else:
raise ValueError("Invalid month")
if day <= 7:
MAP[2][day - 1] = -1
elif day <= 14:
MAP[3][day - 8] = -1
elif day <= 21:
MAP[4][day - 15] = -1
elif day <= 28:
MAP[5][day - 22] = -1
elif day <= 31:
MAP[6][day - 29] = -1
else:
raise ValueError("Invalid day"):::
这次blocks.py主要贡献者为ChatGPT，对话链接（未来抄GPT代码的我都贴出来一下）：https://chatgpt.com/share/8c4ad0e3-b66b-4391-81a9-07e9f42c4199
另外就是这个拼图似乎的确有一些无解的情况，例如我最开始尝试的1月1日就无法得到答案，让我一度怀疑我的代码写错了。当然更多的日期则是有多个解。
这个算法的复杂度没做估计，不过Python跑完需要的时间不少，大概几十秒吧。最开始是想要用C++写的，但是牵扯到数组长度可变这个东西在C++里面还是过于麻烦了点，遂放弃。
2024.6.15更新：
在学校与同学分享了上述经历后，经提醒发现，我只考虑了拼图在平面内旋转的情况，忘记了考虑拼图在Z轴上的翻转。经过修改后，blocks.py中做出如下修改（新增函数flip_horizontal，修改generate_rotations）：
def flip_horizontal(puzzle):
return [(-x, y) for x, y in puzzle]
def generate_rotations(puzzle):
rotations = [puzzle]
rotations.append(translate_to_positive(rotate_90(puzzle)))
rotations.append(translate_to_positive(rotate_180(puzzle)))
rotations.append(translate_to_positive(rotate_270(puzzle)))
_puzzle = translate_to_positive(flip_horizontal(puzzle))
rotations.append(_puzzle)
rotations.append(translate_to_positive(rotate_90(_puzzle)))
rotations.append(translate_to_positive(rotate_180(_puzzle)))
rotations.append(translate_to_positive(rotate_270(_puzzle)))
return [translate_to_positive(rotation) for rotation in rotations]至此算法正确性没有出现问题，然而每层递归需要尝试的次数都翻倍，最终程序需要的运行时间在最坏情况下需要变为原本的 倍。这显然不能接受。
最终经过尝试发现，有一些拼图，如3*2的矩形，其实旋转8次产生的不同情况只有2种，这一些可以被优化掉，还有更多拼图最终产生的不同情况只有4种；与此同时，鉴于深度优先搜索的特性，最早尝试的拼图被放置的次数最多，也就是说如果先尝试的拼图可能性较少，速度会有客观的提升。
最终我创建了文件blocks_export.py并写入以下内容，main.py中的引入也更换为了此文件：
blocks = [
[
[(0, 0), (0, 1), (0, 2), (1, 0), (1, 1), (1, 2)],
[(0, 1), (1, 1), (2, 1), (0, 0), (1, 0), (2, 0)],
],
[
[(0, 0), (0, 1), (0, 2), (1, 0), (1, 2)],
[(0, 1), (1, 1), (2, 1), (0, 0), (2, 0)],
[(1, 2), (1, 1), (1, 0), (0, 2), (0, 0)],
[(2, 0), (1, 0), (0, 0), (2, 1), (0, 1)],
],
[
[(0, 0), (1, 0), (1, 1), (1, 2), (2, 2)],
[(0, 2), (0, 1), (1, 1), (2, 1), (2, 0)],
[(2, 0), (1, 0), (1, 1), (1, 2), (0, 2)],
[(0, 0), (0, 1), (1, 1), (2, 1), (2, 2)],
],
[
[(0, 0), (0, 1), (0, 2), (1, 2), (2, 2)],
[(0, 2), (1, 2), (2, 2), (2, 1), (2, 0)],
[(2, 2), (2, 1), (2, 0), (1, 0), (0, 0)],
[(2, 0), (1, 0), (0, 0), (0, 1), (0, 2)],
],
[
[(0, 0), (1, 0), (1, 1), (2, 0), (3, 0)],
[(0, 3), (0, 2), (1, 2), (0, 1), (0, 0)],
[(3, 1), (2, 1), (2, 0), (1, 1), (0, 1)],
[(1, 0), (1, 1), (0, 1), (1, 2), (1, 3)],
[(3, 0), (2, 0), (2, 1), (1, 0), (0, 0)],
[(0, 0), (0, 1), (1, 1), (0, 2), (0, 3)],
[(0, 1), (1, 1), (1, 0), (2, 1), (3, 1)],
[(1, 3), (1, 2), (0, 2), (1, 1), (1, 0)],
],
[
[(0, 0), (0, 1), (0, 2), (0, 3), (1, 3)],
[(0, 1), (1, 1), (2, 1), (3, 1), (3, 0)],
[(1, 3), (1, 2), (1, 1), (1, 0), (0, 0)],
[(3, 0), (2, 0), (1, 0), (0, 0), (0, 1)],
[(1, 0), (1, 1), (1, 2), (1, 3), (0, 3)],
[(0, 0), (1, 0), (2, 0), (3, 0), (3, 1)],
[(0, 3), (0, 2), (0, 1), (0, 0), (1, 0)],
[(3, 1), (2, 1), (1, 1), (0, 1), (0, 0)],
],
[
[(0, 0), (0, 1), (0, 2), (1, 2), (1, 3)],
[(0, 1), (1, 1), (2, 1), (2, 0), (3, 0)],
[(1, 3), (1, 2), (1, 1), (0, 1), (0, 0)],
[(3, 0), (2, 0), (1, 0), (1, 1), (0, 1)],
[(1, 0), (1, 1), (1, 2), (0, 2), (0, 3)],
[(0, 0), (1, 0), (2, 0), (2, 1), (3, 1)],
[(0, 3), (0, 2), (0, 1), (1, 1), (1, 0)],
[(3, 1), (2, 1), (1, 1), (1, 0), (0, 0)],
],
[
[(0, 0), (0, 1), (0, 2), (1, 1), (1, 2)],
[(0, 1), (1, 1), (2, 1), (1, 0), (2, 0)],
[(1, 2), (1, 1), (1, 0), (0, 1), (0, 0)],
[(2, 0), (1, 0), (0, 0), (1, 1), (0, 1)],
[(1, 0), (1, 1), (1, 2), (0, 1), (0, 2)],
[(0, 0), (1, 0), (2, 0), (1, 1), (2, 1)],
[(0, 2), (0, 1), (0, 0), (1, 1), (1, 0)],
[(2, 1), (1, 1), (0, 1), (1, 0), (0, 0)],
],
]
total_blocks = len(blocks)至此，程序正确性得到了提升，速度甚至也比最开始少考虑很多情况的版本还要快不少！
在讨论提升速度的时候，我们最终还是将思路回到了C++上，但我忘记了C++可变数组vector这个东西，只觉得可变数组实现很麻烦，所以对这个想法不是很感兴趣。
完成上述更改后，我抱着试试看的态度将这段Python交给了ChatGPT：https://chatgpt.com/share/b6a32219-745c-4605-9fd1-bc7b68f2cdc2
令人震惊的是，GPT几乎一次性给出了完全正确的代码，唯一的瑕疵是C++的try-catch没Python那么好用而在第一次运行时失败。稍加修改后，我得到了如下的C++代码，现在任何日期基本都可以在2s左右算出来了：
#include <iomanip>
#include <iostream>
#include <vector>
using namespace std;
int month, day;
string input;
vector<vector<vector<pair<int, int>>>> blocks = {
{{{0, 0}, {0, 1}, {0, 2}, {1, 0}, {1, 1}, {1, 2}},
{{0, 1}, {1, 1}, {2, 1}, {0, 0}, {1, 0}, {2, 0}}},
{{{0, 0}, {0, 1}, {0, 2}, {1, 0}, {1, 2}},
{{0, 1}, {1, 1}, {2, 1}, {0, 0}, {2, 0}},
{{1, 2}, {1, 1}, {1, 0}, {0, 2}, {0, 0}},
{{2, 0}, {1, 0}, {0, 0}, {2, 1}, {0, 1}}},
{{{0, 0}, {1, 0}, {1, 1}, {1, 2}, {2, 2}},
{{0, 2}, {0, 1}, {1, 1}, {2, 1}, {2, 0}},
{{2, 0}, {1, 0}, {1, 1}, {1, 2}, {0, 2}},
{{0, 0}, {0, 1}, {1, 1}, {2, 1}, {2, 2}}},
{{{0, 0}, {0, 1}, {0, 2}, {1, 2}, {2, 2}},
{{0, 2}, {1, 2}, {2, 2}, {2, 1}, {2, 0}},
{{2, 2}, {2, 1}, {2, 0}, {1, 0}, {0, 0}},
{{2, 0}, {1, 0}, {0, 0}, {0, 1}, {0, 2}}},
{{{0, 0}, {1, 0}, {1, 1}, {2, 0}, {3, 0}},
{{0, 3}, {0, 2}, {1, 2}, {0, 1}, {0, 0}},
{{3, 1}, {2, 1}, {2, 0}, {1, 1}, {0, 1}},
{{1, 0}, {1, 1}, {0, 1}, {1, 2}, {1, 3}},
{{3, 0}, {2, 0}, {2, 1}, {1, 0}, {0, 0}},
{{0, 0}, {0, 1}, {1, 1}, {0, 2}, {0, 3}},
{{0, 1}, {1, 1}, {1, 0}, {2, 1}, {3, 1}},
{{1, 3}, {1, 2}, {0, 2}, {1, 1}, {1, 0}}},
{{{0, 0}, {0, 1}, {0, 2}, {0, 3}, {1, 3}},
{{0, 1}, {1, 1}, {2, 1}, {3, 1}, {3, 0}},
{{1, 3}, {1, 2}, {1, 1}, {1, 0}, {0, 0}},
{{3, 0}, {2, 0}, {1, 0}, {0, 0}, {0, 1}},
{{1, 0}, {1, 1}, {1, 2}, {1, 3}, {0, 3}},
{{0, 0}, {1, 0}, {2, 0}, {3, 0}, {3, 1}},
{{0, 3}, {0, 2}, {0, 1}, {0, 0}, {1, 0}},
{{3, 1}, {2, 1}, {1, 1}, {0, 1}, {0, 0}}},
{{{0, 0}, {0, 1}, {0, 2}, {1, 2}, {1, 3}},
{{0, 1}, {1, 1}, {2, 1}, {2, 0}, {3, 0}},
{{1, 3}, {1, 2}, {1, 1}, {0, 1}, {0, 0}},
{{3, 0}, {2, 0}, {1, 0}, {1, 1}, {0, 1}},
{{1, 0}, {1, 1}, {1, 2}, {0, 2}, {0, 3}},
{{0, 0}, {1, 0}, {2, 0}, {2, 1}, {3, 1}},
{{0, 3}, {0, 2}, {0, 1}, {1, 1}, {1, 0}},
{{3, 1}, {2, 1}, {1, 1}, {1, 0}, {0, 0}}},
{{{0, 0}, {0, 1}, {0, 2}, {1, 1}, {1, 2}},
{{0, 1}, {1, 1}, {2, 1}, {1, 0}, {2, 0}},
{{1, 2}, {1, 1}, {1, 0}, {0, 1}, {0, 0}},
{{2, 0}, {1, 0}, {0, 0}, {1, 1}, {0, 1}},
{{1, 0}, {1, 1}, {1, 2}, {0, 1}, {0, 2}},
{{0, 0}, {1, 0}, {2, 0}, {1, 1}, {2, 1}},
{{0, 2}, {0, 1}, {0, 0}, {1, 1}, {1, 0}},
{{2, 1}, {1, 1}, {0, 1}, {1, 0}, {0, 0}}}};
vector<vector<int>> MAP = {{0, 0, 0, 0, 0, 0},
{0, 0, 0, 0, 0, 0},
{0, 0, 0, 0, 0, 0, 0},
{0, 0, 0, 0, 0, 0, 0},
{0, 0, 0, 0, 0, 0, 0},
{0, 0, 0, 0, 0, 0, 0},
{0, 0, 0}};
int total_blocks = blocks.size();
void set_date(int month, int day) {
if (month <= 6) {
MAP[0][month - 1] = -1;
} else if (month <= 12) {
MAP[1][month - 7] = -1;
} else {
throw invalid_argument("Invalid month");
}
if (day <= 7) {
MAP[2][day - 1] = -1;
} else if (day <= 14) {
MAP[3][day - 8] = -1;
} else if (day <= 21) {
MAP[4][day - 15] = -1;
} else if (day <= 28) {
MAP[5][day - 22] = -1;
} else if (day <= 31) {
MAP[6][day - 29] = -1;
} else {
throw invalid_argument("Invalid day");
}
}
void output() {
for (const auto& line : MAP) {
for (const auto& num : line) {
cout << setw(3) << num;
}
cout << endl;
}
}
void dfs(int block_cnt) {
if (block_cnt == total_blocks) {
cout << "Success!" << endl;
output();
exit(0);
}
for (int x = 0; x < MAP.size() - 1; ++x) {
for (int y = 0; y < MAP[x].size(); ++y) {
if (MAP[x][y] != 0) {
continue;
}
if ((x == 0 || MAP[x - 1][y] != 0) &&
(y == 0 || MAP[x][y - 1] != 0) &&
(x + 1 == MAP.size() || MAP[x + 1][y]) != 0 &&
(y + 1 >= MAP[x].size() || MAP[x][y + 1] != 0)) {
return;
}
for (const auto& block : blocks[block_cnt]) {
bool flag = true;
for (const auto& dot : block) {
if (x + dot.first >= MAP.size() ||
y + dot.second >= MAP[x + dot.first].size() ||
MAP[x + dot.first][y + dot.second] != 0) {
flag = false;
break;
}
}
if (!flag) {
continue;
}
for (const auto& dot : block) {
MAP[x + dot.first][y + dot.second] = block_cnt + 1;
}
dfs(block_cnt + 1);
for (const auto& dot : block) {
MAP[x + dot.first][y + dot.second] = 0;
}
}
}
}
}
int main() {
cout << "请输入日期：";
cin >> input;
sscanf(input.c_str(), "%d.%d", &month, &day);
set_date(month, day);
dfs(0);
cout << "Fail!" << endl;
return 0;
}C++还是有点用的
